Gravel-Lok - Repair and Roll Coat
After several years, Gravel-Lok jobs may need some minor repairs. This video walks you through the process and demonstrates how to properly apply a roll coat. THIS TYPE OF MAINTENANCE MAY BE REQUIRED EVERY 1 - 2 years. IMPORTANT NOTES - PLEASE READ BEFORE VIEWING VIDEO: If your job was installed with Amber Gravel-Lok, do not apply Clear Gravel-Lok on top as a roll coat and do not use Clear Gravel-Lok for any repairs. If your job was installed with Amber Gravel-Lok only use Amber for roll coats and repairs. The same holds true for jobs installed with Clear Gravel-Lok - only use Clear Gravel-Lok for repairs and roll coats. For patching, measure your stones with a plastic 5 gallon bucket. Fill up bucket half way with stones and mix 12 oz. of liquid with the stones (this video says 8 oz. but please use 12 oz.). Coverage rates for roll coats have been updated to 400 - 500 sf per five gallon container (80 - 100 sf per gallon). Call for more information 888-851-0051. Or, visit our website at www.celltekdirect.com
Gravel-Lok Case Study - DIY Small Project
Homeowner installed Gravel-Lok DIY - Small Project. This homeowner has a 15’ x 2’ wide strip that separates her driveway from her sidewalk. It is an area that receives both pedestrian and vehicular traffic. It is filled with decorative stone ranging in size from 3/8” to 3”. Over time the stones disappear – they get tossed away due to foot or vehicular traffic. They end up in the driveway, on the sidewalk, or adjacent beds. They also ‘settle’ and migrate down into the earth below the bed. Dirt, leaves and small twigs infiltrate the bed of pebbles. It’s impossible to blow off or vacuum the area without losing more stones. Every year or two the homeowner picks up the stones, washes them, and replaces them. This year she used Gravel-Lok to bond the stones together. The following slides describe the process.
Concrete Layover with Gravel-Lok
How do you install Gravel-Lok on top of an existing concrete surface? This video will show you how. IMPORTANT NOTE: Ratio of liquid to stone has been revised to be 20 oz. liquid to a 5 gallon bucket of gravel. Additionally, see revised CAD on our website www.celltekdirect.com. Stone size for ADA compliance can be 1/8" up to 1/2".
Gravel-Lok - Garden Path Installation
Gravel-Lok instructional video featuring tips and tricks from the pros. IMPORTANT NOTE: The mix method ratio has been updated since this video was published, it is now 20 oz. of liquid to a five gallon bucket of stone (not filled to top; fill to 5 gallon mark a few inches from top of bucket). Roll coat coverage is 400 - 500 sf per five gallon container, or 80 - 100 sf per gallon. Please call us for more details at 410-721-4844 or visit our website www.celltekdirect.com
Gravel-Lok Installation: Mix Method
IMPORTANT NOTE: Mix method ratio has been updated since this video was published. Please follow mix ration in instructions on the back of every container which is 20 - 24 oz. of liquid to a five gallon bucket of stones (not filled to the top; fill bucket to 5 gallon mark a few inches from top of bucket). MAINTENANCE MAY BE REQUIRED AS OFTEN AS EVERY 1 - 2 YEARS. Please call if you have additional questions 410-721-4844 or visit our website www.celltekdirect.com
Gravel-Lok - How to clean gravel
When using Gravel-Lok you must first wash your gravel to remove any dirt or dust and allow the stones to dry completely. We recommend Gravel-Lok Pebbles for use with Gravel-Lok but if you decide to use your own stones check out this video for some helpful tips. The stone color options have changed since this video was created! Please check out our website www.celltekdirect.com or give us a call at 410-721-4844 for current options.

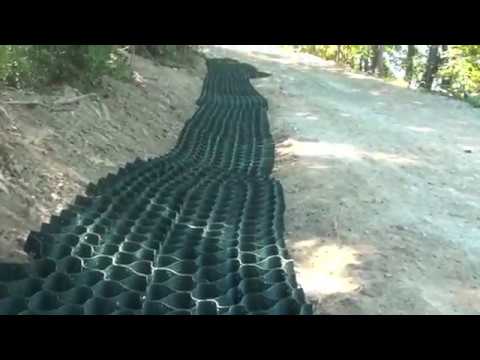

Cell-Tek SlopeGrid Installation - Erosion Control, Slope Protection
SLOPEGRID cellular confinement system provides the slope protection needed to control erosion. How to install SlopeGrid, information about rebar J-Hooks and tendons as well. NOTE: we no longer carry polyester tendons as shown in this video. We now carry galvanized steel cabling with a break strength of 3,700 lbs. or 6,100 lbs. We also carry earth anchors, u-bolts, and all accessories need for any slope project! more info: http://celltekdirect.com/slope.html
Cell-Tek Q&A: How do you install SlopeGrid?
Control erosion and protect your slopes with Cell-Tek's inexpensive and easy to install SlopeGrid. This video will help you better understand the installation process. NOTE: This video contains images and information about certain accessories which have changed since the video was published. Please contact us at 410-721-4844 for the most up-to-date information or consult our website www.celltekdirect.com.

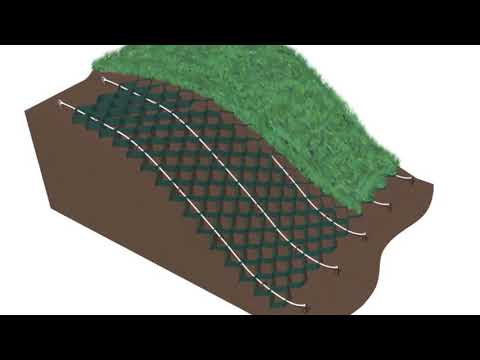

Cell-Tek Q&A: How do you make rebar J-hooks?
J-Hooks are used to pin Cell-Tek grids to the earth. This video explains J-hooks and explains how to make them with rebar. NOTE: Certain details regarding number of J hooks per grid and placement have been updated since this video was published. Please check with us for current details, Cell-Tek Geosynthetics 410-721-4844 or www.celltekdirect.com. We also sell pre-fabricated J hooks if you do not plan to make them.
Cell-Tek Q&A: How do you connect Cell-Tek grids?
This video demonstrates various ways to connect multiple LSG grids to create one continuous system. NOTE: Since this video was published we have discontinued the Quick Clips. The current options for connecting one grid to another are 1/4" zip ties (if you are only connecting a few grids), or a stapler. Please check with Cell-Tek Geosynthetics at 410-721-4844 for guidance about the best method for your project. Or, consult our website at www.celltekdirect.com
Cell-Tek Q&A: How do you install LSG for turf / grass paving?
Using the LSG series load support grid for grass paving for overflow parking area. NOTE: some details have changed since this video was published. The LSG-4 has a load bearing capacity of 40,000 lbs. while the LSG-6 has a load bearing capacity of 80,000 lbs. Please check with Cell-Tek Geosynthetics for guidance. Telephone 410-721-4844.
Cell-Tek Q&A: How do you install LSG series grid with a gravel driveway?
Video shows how to install our LSG Load Support Grid series for a gravel driveway. For most up to date information please visit our website www.celltekdirect.com. Please note that the LSG-3 has an 8,000 lb. load bearing capacity, LSG-4 has a 40,000 lb. load bearing capacity (H10), and the LSG-6 has an 80,000 lb. load bearing capacity (H20).
