SlopeGrid® Technical Data

Single Cell
Cell
Depth
Single Cell

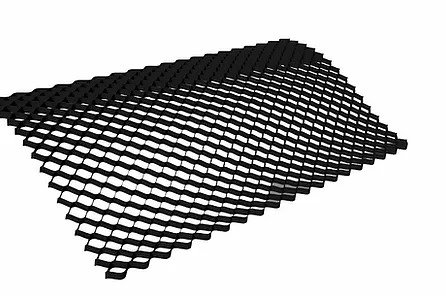

Expanded Grid 8' x 29' (232 SF)
Expanded Grid 8' x 29' (232 SF)
Collapsed Grid
Collapsed Grid
Note: SlopeGrid® is black, not green.
PRODUCT CELL DEPTH
SLP-4 4" (100 mm)
SLP-6 6" (150 mm)
Nominal Cell Dimensions 12" x 12" x Cell Depth
Expanded Grid Dimensions 8' x 29' (232 sft)
PROPERTIES TEST METHOD TEST VALUE
Material Composition ASTM D1505 Polymer; Virgin HDPE Density: 0.9574 g/cm3
Nominal Sheet Thickness ASTM D5199 1.45 mm
Environmental Stress Cracking ASTM D1693 >4500 Hrs.
Stabilizer ASTM E682 1.55% Carbon Black
Short Term Seam Peel Strength 4" (100 mm) 1542N
Short Term Seam Peel Strength 6" (150 mm) 2170N
Long Term Seam Peel Strength A 100 mm (4 inch) wide section sample shall support a (160 lb.) load for a period of 7 days (168 hrs.) minimum in a temperature controlled environment undergoing a temperature change on a 1 hour cycel from ambient room temperature to (130 F)
SPECIFICATIONS SLP-4 SLP-6
Weight Per Grid 48 lbs. 72 lbs.
Units Per Pallet 18 12
SF Per Pallet 4176 2784
