Gravel-Lok® Installation

Home > Gravel-Lok® > Gravel-Lok® Installation
Gravel-Lok

Installation Instructions
(Mix method with LSG Load Support Grid)

Read SDS (Safety Data Sheet) before installing Gravel-Lok®




Installation – Mix Method
(with LSG Series® Load Support Grid)

Click here to download mix method instructions

Click here to download pour method instructions

Click here to download tips for joints between flagstones

Gravel Lok<sup>®</sup> Installation1

STEP 1

Excavate the job site. Properly grade subgrade to allow water to flow away from any structures. Add drainage if necessary. Install moisture barrier if project meets a foundation with a basement.

Gravel Lok<sup>®</sup> Installation 2

STEP 2

Layout geotextile fabric. This creates a barrier to prevent sediments from migrating up into the system and causing future settlement. Geotextile fabric must separate aggregates from subgrade and soils on all sides of the project.

Note: We recommend DuPont geotextiles.

Gravel Lok<sup>®</sup> Installation 3

STEP 3

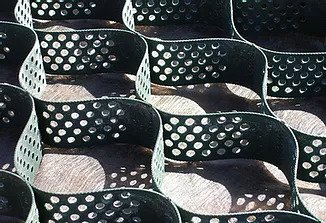

Install Cell-Tek LSG Series® Load Support Grid. This reinforces the base material to prevent lateral movement.

More Info on Load Support Grid Click Here.

Gravel Lok<sup>®</sup> Installation 4

STEP 4

The cells should be infilled with a washed aggregate infill equivalent to a #57 (3/4”) stone to allow for maximum permeability. Overfill cells by 1″.

Gravel Lok<sup>®</sup> Installation 5

STEP 5

Spread, level and tamp.

Gravel Lok<sup>®</sup> Installation 6

STEP 6

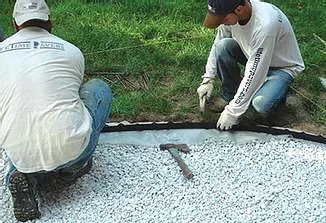

Install edging (plastic, aluminum, etc.). This creates a clean edge to define the shape of the surface’s final contours.

Gravel Lok<sup>®</sup> Installation 7

STEP 7

Wash decorative stones and allow to dry (or use triple-washed Gravel-Lok® Pebbles). Mix stones with Gravel-Lok® in a plastic bucket, cement mixer or wheelbarrow.

MIXING RATIO:
In most cases, mixing 20-24 oz. of liquid with a 5 gallon bucket of stones is ideal. Important: a plastic 5 gallon bucket is considered ‘full’ when the contents are filled a few inches below the top of the bucket. Do not completely fill the bucket to the top with stones.

Click here to download mix ratio test instructions.

COVERAGE RATE:
Using a ratio of 20 oz. of liquid to a five gallon bucket of stone, the coverage rate is approx. 93 sf per five gallon container of Gravel-Lok® based on mixing with stone and troweling out at 2″ deep. (approx. 18.6 sf per gallon)

NOTE: For driving surfaces please contact Cell-Tek Geosynthetics at 888-851-0051.

Gravel Lok<sup>®</sup> Installation 8

STEP 8

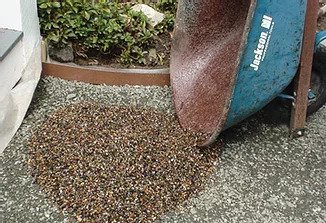

Pour out in one small area.

Gravel Lok<sup>®</sup> Installation 9

STEP 9

Level and trowel to finish.

Gravel Lok<sup>®</sup> Installation 10

STEP 10

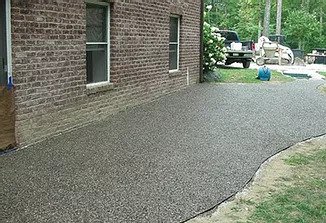

Allow 24 hours to cure. Rope off treated area to protect it from people and animals. Do not walk on the surface before it has cured. Do not cover with plastic. This will trap in moisture and cause premature curing.

Gravel Lok<sup>®</sup> Installation 11

STEP 11

Apply at least one roll coat using a medium nap foam paint roller. Allow each roll coat to cure for 24 hours before applying the next.

COVERAGE RATE PER ROLL COAT:
400-500 square feet per 5 gallon container. (90 – 100 sf per gallon)
